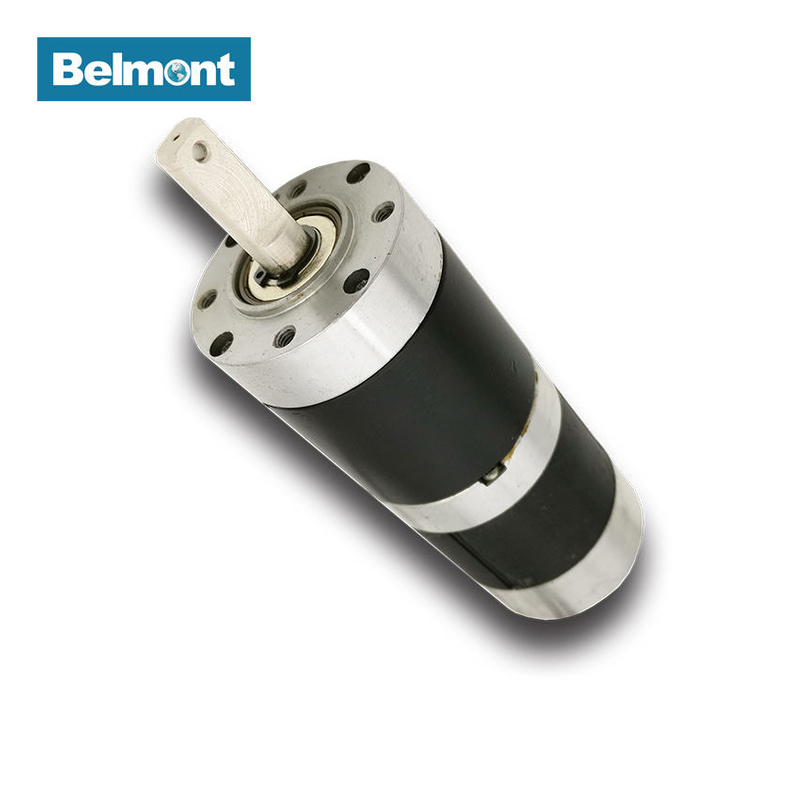

BPM-56JBX+XA56 24v Dc Brushless Planetary Reduction Gear Motor

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available

Quantity:
  • BPM-56JBX+XA56
  • Belmont
  • BPM-56JBX+XA56

Product Description


Our Products

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.

Customized manufacturing available



BM-585(平台正文)


Specifications

Model

VOLTAGE

(VDC)
NO LOAD RATED LOAD

TORQUE

(Nm)
RATIO STAGE

Power

(W)

LENGTH

(mm)

CURRENT

(A)

SPEED

(r/min)

CURRENT

(A)

SPEED

(r/min)
BPM-56JBX+XA56-01 24 0.57 534 3.39 465 1.1 3.5 1 53 118.5
BPM-56JBX+XA56-02 24 0.57 442 3.39 385 1.3 4 1 53 118.5
BPM-56JBX+XA56-03 24 0.57 340 3.39 296 1.7 6 1 53 118.5
BPM-56JBX+XA56-04 24 0.63 128 3.39 111 4.1 16 2 47 138
BPM-56JBX+XA56-05 24 0.63 79 3.39 69 6.6 24 2 47 138
BPM-56JBX+XA56-06 24 0.63 63.8 3.39 55.6 8.2 36 2 47 138
BPM-56JBX+XA56-07 24 0.7 29.1 3.39 25.3 16.1 64 3 43 138
BPM-56JBX+XA56-08 24 0.7 15.3 3.39 13.3 30.6 144 3 43 138
BPM-56JBX+XA56-09 24 0.7 9.7 3.39 8.5 48.2 256 3 43 138
BPM-56JBX+XA56-10 24 0.78 4.3 3.39 3.8 97.5 576 4 38 151
BPM-56JBX+XA56-11 24 0.78 2.7 3.39 2.4 153.6 864 4 38 151

Model

VOLTAGE

(VDC)
NO LOAD RATED LOAD

TORQUE

(Nm)

EMF

 constant

Torque

constant

LENGTH

(mm)

CURRENT

(A)

SPEED

(r/min)

CURRENT

(A)

SPEED

(r/min)
BPM-XA56BLDC 24 0.51 2298 3.39 2000 0.28 0.116 0.01 75

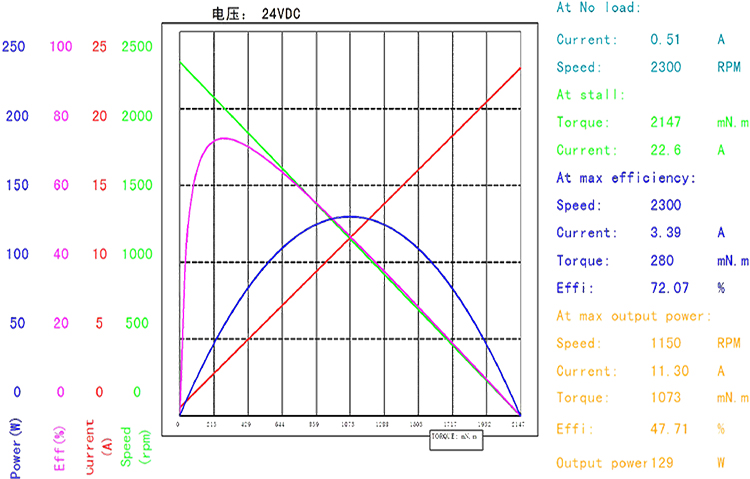

Performance Curve

BMM-56JBX+XA56BLDC(官网曲线图)

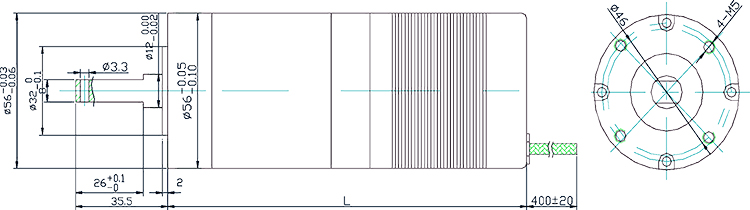

Outline Drawing

BMM-56JBX+XA56BLDC(官网外形图)


Packing & Shipping


We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.



Packaging
