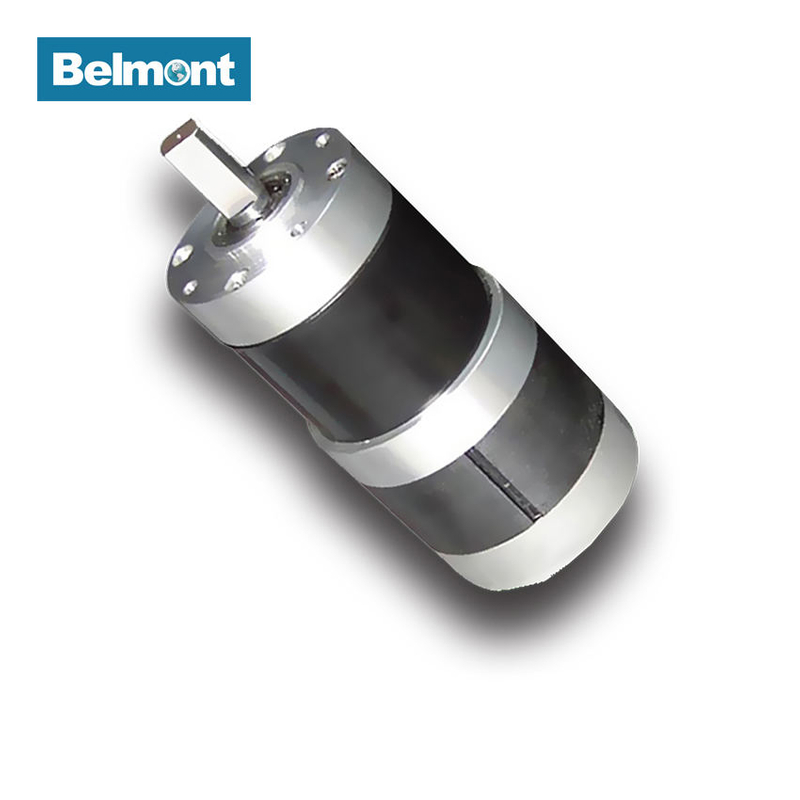

BPM-80JBX+X88 24v DC Brushless Planetary Reduction Gear Motor

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available

Quantity:
  • BPM-80JBX+X88
  • Belmont
  • BPM-80JBX+X88

Product Description


Our Products

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.

Customized manufacturing available

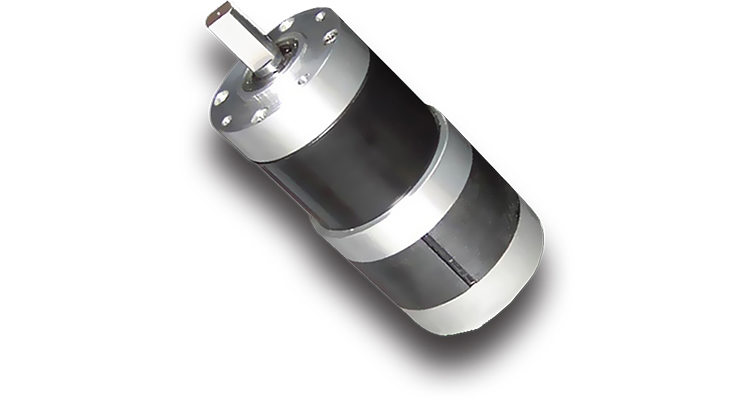

BM-133(平台正文)


Specifications

Model

VOLTAGE

(VDC)
NO LOAD RATED LOAD

TORQUE

(Nm)
RATIO STAGE

Power

(W)

LENGTH

(mm)

CURRENT

(A)

SPEED

(r/min)

CURRENT

(A)

SPEED

(r/min)
BPM80JBX+X88-01 24 1.97 686 11.79 583 3.1 4.29 1 188 140.5
BPM80JBX+X88-02 24 1.97 568 11.79 483 3.7 5.18 1 188 140.5
BPM80JBX+X88-03 24 1.97 436 11.79 370 4.9 6.75 1 188 140.5
BPM80JBX+X88-04 24 2.18 160 11.79 136 11.9 18.37 2 170 162
BPM80JBX+X88-05 24 2.18 102 11.79 86 18.7 28.93 2 170 162
BPM80JBX+X88-06 24 2.18 84 11.79 71 22.7 34.98 2 170 162
BPM80JBX+X88-07 24 2.43 37 11.79 32 45.9 78.72 3 153 183.5
BPM80JBX+X88-08 24 2.43 20 11.79 17 87.4 149.9 3 153 183.5
BPM80JBX+X88-09 24 2.43 12 11.79 11 137.7 236.1 3 153 183.5
BPM80JBX+X88-10 24 2.7 6 11.79 5 278.9 531.34 4 137 205
BPM80JBX+X88-11 24 2.7 4 11.79 3 439.3 836.86 4 137 205

Model

VOLTAGE

(VDC)
NO LOAD RATED LOAD

TORQUE

(Nm)

EM

 constant

Torque

constant

LENGTH

(mm)

CURRENT

(A)

SPEED

(r/min)

CURRENT

(A)

SPEED

(r/min)
BPM-X88BLDC 24 1.77 2941 11.79 2500 0.8 0.0084 0.0798 86

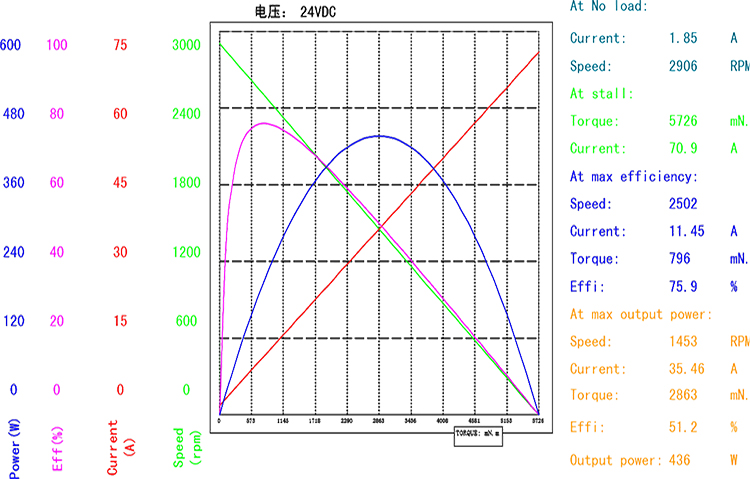

Performance Curve

BMM-80JBX+X88BLDC(官网曲线图)

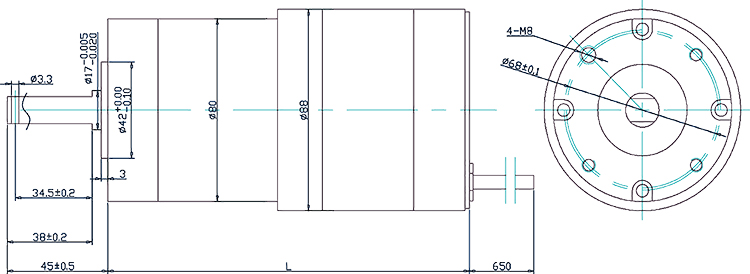

Outline Drawing

BMM-80JBX+X88BLDC(官网外形图)


Packing & Shipping



We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.


Packaging
